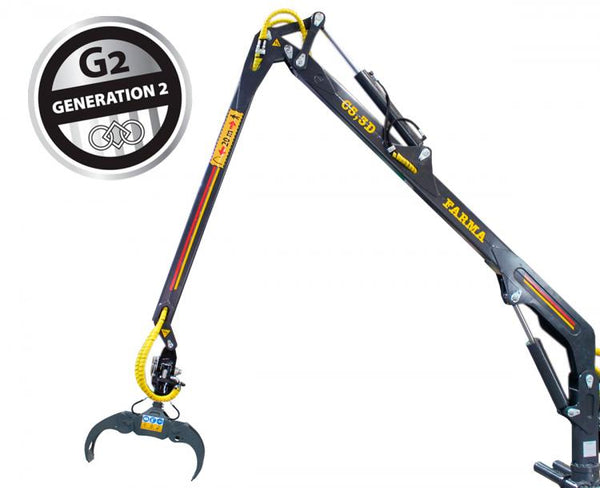

The crane has a reach of 17.5'. C 5,3 lifts 1245lbs at full reach. The hydraulic hoses are will protected inside the lift arm
All the cranes are based on a new arm system comprising a link system between the lift arm and the outer arm. Thanks to their design, the cranes offer the very best close range properties, a smoother operation and an outer arm that is equally powerful through the working range. The linkage makes the work area adjacent to the crane column/railing much easier and smoother.
- 3+2 control valve
- 42'' grapple
- Weight: 1280 lbs
- Slewing torque: 8.8 kNm
- Boom rotation: 360 degrees
- Dual cylinder rack and pinion turnhouse
- Max reach: 17.5'
- Required flow: 5-15 GPM
- Working pressure: 2540 psi
Add telescopic outriggers!
- Mount it on a road trailer or directly to a tractor 3 point hitch (trailer prep required)
- Can be mounted sperately from crane and controlled from the same valve
Add an 8 ton forestry trailer!
- 4 sets of adjustable posts
- Adjustable rear extension to allow loading of long logs as well as shortening the trailer for tight areas.
- 440/60-15.5 12 ply forestry tires with reinforced rims
- Fold down outriggers
CALL OR EMAIL FOR BEST PRICING!
